JECO Lubrication Van

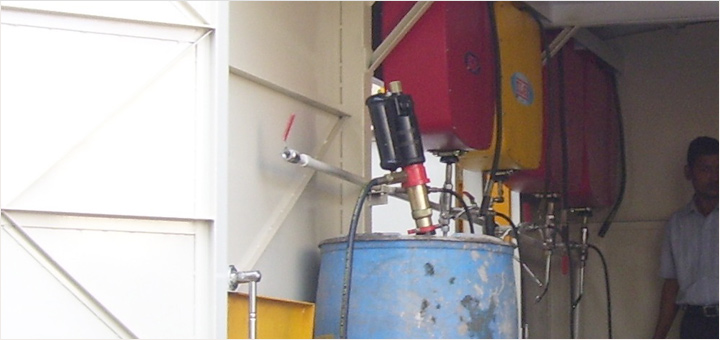

The JECO Lubrication Van or JECO Lube Van is designed basically for lubricating the larger field equipments. It can also be used for cleaning the larger field equipments and their filters, radiators, heat exchangers, etc. Its main equipments are pneumatic lubricating pumps, greasing pumps, pneumatic and electrical hand held tools.

It can be equipped with pneumatic tools to break concrete, undertake high pressure washing,etc. All this and more is possible as the compressor, alternator, etc. inside are adequately sized.

The technology pertaining to the JECO mobile Lubrication van is developed in-house, is pending patent grant. It also uses the patented power transmission device “PLURODRIVE”. It has several user friendly features and is extremely economical in operation. Please write to us with Your detailed requirements, We shall get back to You with all the necessary information.

A high pressure triple or single plunger pump is also at times a part of the equipment.

POWER

DIESEL ENGINE

10 hp to 25 hp [Option: Battery start]

SERVICE EQUIPMENTS

PNEUMATIC

AIR COMPRESSOR

9 to 45 cfm & 7 to 12.5 kg/cm2

AIR RECEIVER TANK

120 to 350 ltrs.

PNEUMATIC SERVICE TOOLS

Pneumatic Oil Pump, Pneumatic Grease Pump, Pneumatic Diaphragm Pump, Pneumatic Torque Wrench / Angle Wrench / Ratch Wrench, Pneumatic Tire Filling, Pneumatic Grease Gun, Pneumatic Chipping Hammer, Pneumatic Screwdrivers & Other Pneumatic Hand Tools, etc..

OPTIONAL

High Pressure WATER PUMP

9 to 25 lpm & 10 to 45 kg/cm2.

WATER TANK

400 to 1200 ltrs

ELECTRICAL

POWER ALTERNATOR

5 to 20 KVA

ELECTRICAL SERVICE TOOLS

Portable Welding Machine, Lathe Machine, Bench Drilling Machine, Bench Grinding Machine, Electric Motor Driven High Pressure Piston Pump, Hand Drilling Machine, Portable Cutting Machine, Halogen Lamps etc..

MISCELLANEOUS

Over Head Chain Pulley, Notice Board cum Scheduler & planner, Fan, Tube Lights.

Extra storage of various oils is available as a part of the JECO Lubrication Van.

VEHICLE

ANY SUITBLE VEHICLE SUCH AS 1112, 407, 1613, of TATA, LEYLAND, EICHER,MAHINDRA, etc.

We use only the best makes such as KIRLOSKAR, CROMPTON, ELGI, INGERSOL RAND, BOSCHE, WOLF, BLACK&DECKER, ADVANI OERLIKON, ESAB, etc.etc. Customers are free to specify the makes and models of the equipments to be used inside the workshop. We can add or delete items and equipments as required by the site/customer needs, keeping the basic features intact.
